Upgrade Standard RTK DGPS Instruments into Laser RTK Units

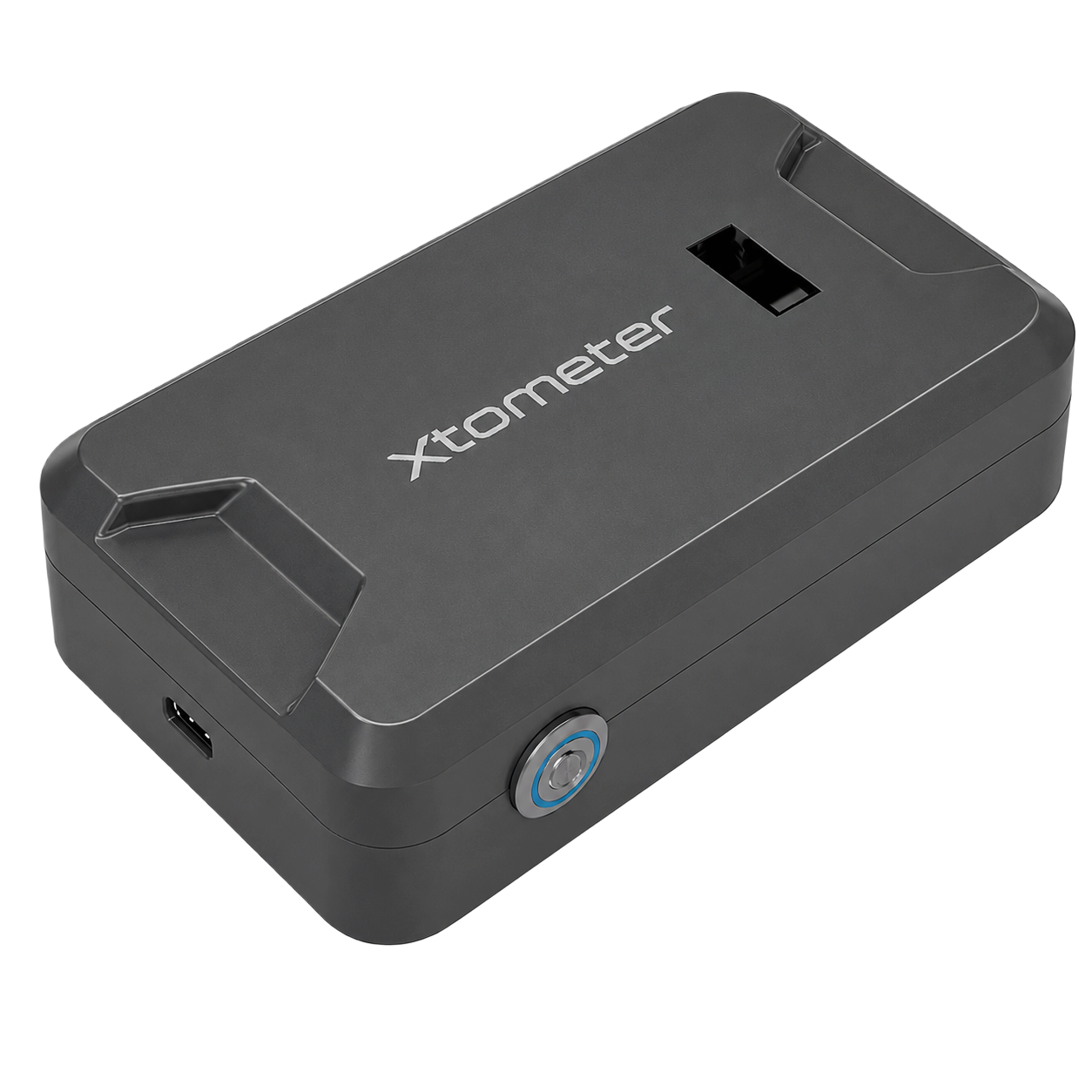

Xtometer Laser RTK Extension Module
Xtometer is a high-precision Laser RTK extension module designed for the XT-200 platform. It helps survey teams capture offset target points safely and accurately where direct rover rod positioning is difficult or unsafe.
Hardware Upgrade Ecosystem
Upgrade your existing standard RTK DGPS instruments directly into full Laser RTK units.
Xtometer marks a significant leap forward in precision surveying hardware. Developed specifically for the XT-200 platform architecture, this add-on helps convert standard RTK DGPS workflows into Laser RTK workflows.
By merging laser distance parameters straight into the GNSS telemetry workflow, Xtometer allows users to capture offset target points safely in places where direct rover rod positioning is difficult, unsafe, or impossible.
Advanced Offset Surveying: Xtometer allows survey users to log accurate location points across open utility trenches, structural edges, hazardous obstacles, restricted zones, and difficult-to-access target areas without placing the rover rod directly on the point.
Compatible with XT-200
Xtometer is designed for seamless compatibility with the XT-200 GNSS Receiver. It supports plug-and-play linking with the XT-200 platform and helps extend survey capabilities with Laser RTK offset measurement workflows.
Key Benefits
Laser RTK Upgrade
Instantly upgrade standard DGPS workflows into high-precision laser RTK systems.
XT-200 Compatibility
Engineered for seamless, native integration with the XT-200 base controller.
Advanced Offset Surveying
Merge laser distance parameters safely without direct rover rod placement.
Safer Field Measurement
Capture target entries over locations where physical access is dangerous.
Bluetooth 5.0 Connectivity
Reliable core protocol stack for stable communication with your devices.
NMEA-Compatible Pipeline
Standardized payload injection ensures consistent data formatting.
Long Field Operation
Extended operation window allowing over a full shift of continuous tracking.
Rugged Field Design
Premium tactile triggers and durable composite housing built for the outdoors.
Key Advantages
- Bespoke XT-200 Handshake Tailored directly for immediate plug-and-play linking with the XT-200 base controller telemetry.
- Advanced Offset Surveying Helps log accurate location tags across open utility trenches, structural edges, or hazardous obstacles safely.
- Industrial Form-Factor Designed with premium tactile deployment triggers, durable composite housing, and distinct status rings.
- Extended Operation Window The 3500mAh internal reserve combined with Bluetooth LE allows over a full shift of continuous tracking.
Electrical Profile & Power Management
| Parameter Name | Nominal / Max |
|---|---|
| Input Voltage Supply | 5.0V nominal, 5.25V max (V DC) |
| Operating / Charging Current | 350mA nominal, 500mA max |
| Internal Storage Cell | 3500mAh |
| Continuous Field Lifespan | 14 to 16 Hours |
| Hardware Charging Core | Weather-Sealed USB Type-C |
Connection Protocols
| Interface Protocol | Operational Capability |
|---|---|
| Wireless Layer | Bluetooth 5.0 Core Protocol Stack |
| Data Pipeline | NMEA-Compliant Payload Injection |
| Range Bounds | 10m-15m Field Link Integrity |
| Update Frequency | Up to 10 Hz Dynamic Telemetry |
Use Cases
Expand your surveying reach in complex environments.
Utility Trench SurveyingHazardous Area SurveyingStructural Edge MeasurementOffset Point CollectionConstruction SurveyingInfrastructure MappingIndustrial Site SurveyingRTK Workflow Upgrade
Frequently Asked Questions
What is Xtometer?+
Xtometer is a high-precision Laser RTK extension module that upgrades standard RTK DGPS instruments into full Laser RTK units.
Is Xtometer compatible with XT-200?+
Yes, Xtometer is designed specifically for seamless plug-and-play compatibility with the XT-200 GNSS Receiver platform.
How does Xtometer help in Laser RTK surveying?+
It merges laser distance parameters directly into the GNSS telemetry workflow, allowing you to offset target entries safely.
Can Xtometer be used for offset surveying?+
Yes, it allows you to log accurate location points across open trenches, edges, and hazardous areas without placing the rover rod directly on the point.
What is the battery capacity of Xtometer?+
The device features an internal storage cell of 3500mAh, providing 14 to 16 hours of continuous field lifespan.
Which wireless connection does Xtometer support?+
It supports Bluetooth 5.0 Core Protocol Stack for reliable, low-energy communication with the base controller.
What is the update frequency of Xtometer?+
The module provides up to 10Hz Dynamic Telemetry for its update frequency.
Where can Xtometer be used?+
It is ideal for utility trench surveying, hazardous area surveying, structural edge measurement, construction surveying, and industrial mapping.
Upgrade Your RTK Workflow with Xtometer
Extend your XT-200 survey setup with Xtometer and capture accurate Laser RTK offset measurements in complex, unsafe, and hard-to-reach field environments.
